ST1 C band using Cignal Dish 75 cm

try to shoot Videoland

Using Bolt630 TP4

3550 V 30000 3/4

i got 13% Quality not enough

Inside CIGNAL STB

Warranty Void If Sticker Removed..

Main IC
U4 = ST15107NYB
U5 = HY5DU281622FTP
U31 = TDA024T
U38 = 74H164D (14 pins)
U12= 920BB742
Quartz = 27 mhz

My Uncle inside Hyperbaric chamber

Hyperbaric Oxygen Therapy

Hyper" means increased and "baric" relates to pressure. Hyperbaric oxygen therapy (HBOT) thus refers to intermittent treatment of the entire body with 100-percent oxygen at greater than normal atmospheric pressures.

DiSEqC 8/1 switch configuration for Dreambox

http://www.juras-projects.org/eng/hardware.php
http://www.vladimir-ilic.com/2009/08/diseqc-81-switch-configuration-for-dreambox-enigma-1/

President's Cup Tennis Champion

Telcom 1 ( C band) using Cignal 70cm Dish

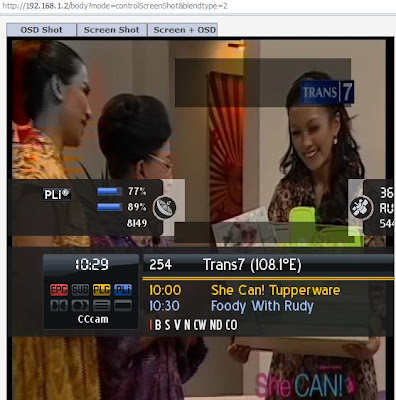

TelkomVision on Telkom 1 at 108.0°E
TP 3600 V 28000 3/4 , 3620 H 28000 3/4 , 3640 V 28000 3/4

Creating JTAG and Dreamup Cables

http://www.zytrax.com/tech/layer_1/cables/tech_rs232.htm#v35

http://www.satellites.co.uk/satellite/dreambox500/122700-dreambox-500-jtag-information.html

http://www.satellites.co.uk/satellite/attachments/dreambox500/15775d1208769915-dreambox-500-jtag-information-dreambox-500-jtag-information-jpg

http://www.satellites.co.uk/satellite/dreambox500/122700-dreambox-500-jtag-information-8.html

DB25 > resistor > PCB pin

2 --> 100 ohms --> 11 ( Halt)
3 --> 100 ohms --> 9 ( Tms )
4 --> 100 ohms --> 7 ( Tck )
5 --> 100 ohms --> 3 ( Tdi )
11 --> 100 ohms --> 1 ( Tdo )
25 ------------------ 16 ( Ground)

Parallel DB25 cable
2 - Red
3- Ornage
4 - yellow
5- Green
11 - pink
25 - whiteblack


Download the software >>jtagdm500aio.zip

Here is the result of my Jtag for Jegamaster:
==============================================================================

C:\Documents and Settings\Administrator>C:\temp\Jtagdm500\JtagDm500.exe -m dm500
-i
Dreambox Dm500 board initialize
Flash info. : INTEL JS28F640J3D75
[dm500] reading CA:ca 00 01 06 2e 7b 64 00 12 25 2e 7b 64 06 04 ff
Readed Config Area
Configuration Area
Mac Address: 00:12:25:2e:7b:64
Redunderant Mac Address: 2e:7b:64
Tuner Type alps

C:\Documents and Settings\Administrator>C:\temp\Jtagdm500\JtagDm500.exe -m dm500
-e 00:09:34:2e:7b:64
Dreambox Dm500 board initialize
Flash info. : INTEL JS28F640J3D75
[dm500] reading CA:ca 00 01 06 2e 7b 64 00 12 25 2e 7b 64 06 04 ff
Readed Config Area
Configuration Area
Mac Address: 00:12:25:2e:7b:64
Redunderant Mac Address: 2e:7b:64
Tuner Type alps
Mac Address Change Requested

Commit Config Area
Configuration Area
Mac Address: 00:09:34:2e:7b:64
Redunderant Mac Address: 2e:7b:64
Tuner Type alps
Erase Flash. done
Download..................................... done
Bienvenidos Amigos!!!!
Complete !

==========================================================
Using Dreamup v 1.3.3.4 and dreamup rs232 cable from Wolf09


12:41:05 PM box type: DM500
12:41:14 PM Ping result: OK, box is alive and speaking to us ;-)
12:42:15 PM Uploading file to box...
12:55:24 PM calculating CRC32 on STB...
12:55:24 PM erasing flash...
12:56:06 PM box is flashing from its memory...
12:57:02 PM calculating CRC32 on STB's flash...
12:57:11 PM "flash erase"...
12:57:20 PM OK, flash-copy succeeded

here some pictures:

My Satellite Receivers

My Satellite Receivers

My Profile was chosen

Out of 10,000 members . My Profile was among s chosen.

Defective DM500s

I got an Old Dm500s from my Friend in Koronadal City.
It has pli jade image v 2.0.4 with C : line from China.

I successfully re image the device but same problem persist. No Internet and no FTA signal received no Locked Sync in automatic and manual transponder scan.

Here are the pics:
